Mobile lifting aid ezzLIFT
The mobile lifting aid ezzLIFT is used when objects are transported over a limited distance from or to different locations. It allows an employee to carry out activities without having to call colleagues and thus avoids waiting times for forklifts, cranes or other means of transport.
The ezzLIFTmaster600 is ideal for lifting cable drums up until 600 kg.
ezzLIFTmaster150
The ezzLIFTmaster150 is a powerful and mobile solution for the safe and ergonomic handling of various cable reels. The lifting technology grips directly on the drum's flange. With the electric control, it is possible to rotate the drum up to 180 degrees in a controlled manner. The result is easy load handling, even with a horizontal drum, and easy load placement, even on its side.
Unsere Kabeltrommel Hebetechnologien im Video:
EzzLIFTmaster150 is the ideal lifting aid for cable reels.*
EzzLIFTmaster600 can lift cable reels up to 600kg 3 meter high.*
*Music in both ideos: "Aurea Carmina"
Kevin MacLeod (incompetech.com)
Licensed under Creative Commons: By Attribution 4.0
Advantages:
-
High dynamics and availability: can be used anywhere thanks to battery operation and high availability thanks to the long battery life.
-
Robust design: a stable and loyal partner even in harsh environments and with high clock frequencies and heavy loads.
-
High flexibility: thanks to the modular structure, it can be adapted to your own needs and requirements–be it the chassis or the standardized accessories.
-
Versatile in operation: due to the standard quick-change coupling, the lifting aid can support different tasks with different tools.

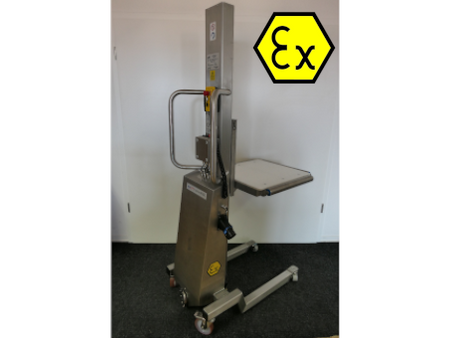

The lifting aid ezzLIFTmasterATEX can be used in explosion-hazardous areas
Areas of application:
-
Provision of components for the assembly of apparatus
-
Assembly of machines, vehicles and many others
-
Automotive handling tasks, component and module assembly
-
Tool change
-
Helpful in the areas of logistics and production
-
Handling of sensitive components
-
High precision through suitable attachments and controls
-
Equipping (packaging) machines, shelves or workplaces
-
The handling between the "supermarket" and the assembly area
-
Loading of conveyor systems or cleaning systems and much more
Properties:
-
High-performance lifter
-
Drive with ball screw spindle for high safety and precision
-
Low maintenance
-
Braked motor
-
65 mm / sec lifting speed
-
Remote control device with spiral cable
-
Rear castors with foot brakes
-
Versatility through quick-change coupling
-
Load capacity: 80 - 600 kilo
Variants of the mobile lifting aid ezzLIFT
Application examples of the mobile lifting aid ezzLIFT
Mobile lifting aid
ezzLIFTmaster with a drum gripper.
The mobile lifting aid
ezzLIFTmaster is able to pick up, turn and store cable drums.
